remix dry mortar plant automatic Stucco Masonry Cement Plaster bagging

Product Description

Premixed Stucco Masonry Cement Tile Adhesive Plaster Dry Mortar Mixer Plant Machine

Production Description

Application Scope of Mortar Mixing Machine:

Putty powder,dry mortar,gypsum powder etc.industrial production.

Structure of Cement Mortar Mixing Machine:

Screw Feeder;dry mortar mixing and packing all in one machine and ribbon impeller.

Functions of Cement Mortar Mixing Machine:

1. Automatic material feeding,mixing and packing;

2. Automatic weighing and packing;

3. The packing weight is adjustable from 20-25Kg.

Features of dry mortar mixing machine
1) Small investment, most suitable for individuals.

2) The area is small, and factories can be built in ordinary houses.

3) The operation is simple, and it can be completed by 2-3 people. .

4) The output is high, the output is generally 3-4T/H, reaching 20-25T/day.

5) Easy to operate and maintain.

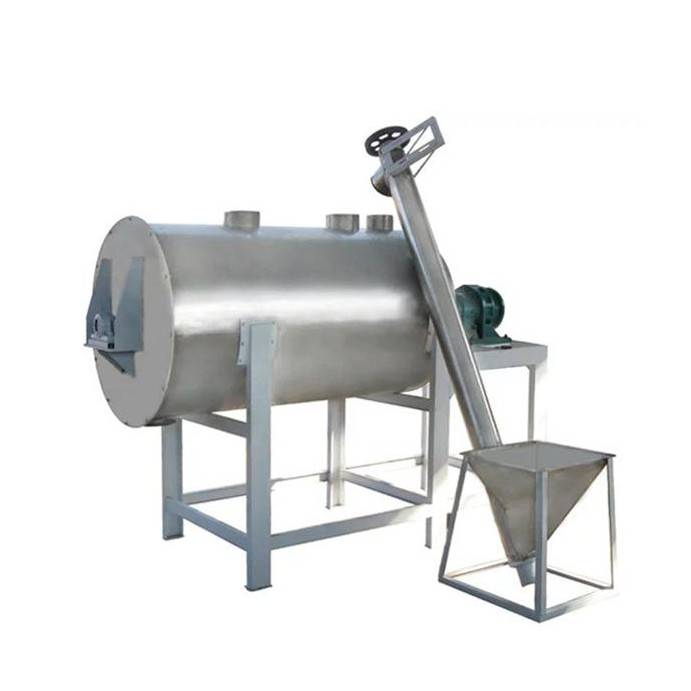

Screw Conveyor with Feeding Hopper and Spiral Ribbon Mixer

The screw conveyor is of Φ165X3500mm, feeding material to the mixer. The outer and inner screw ribbon blade driven by high speed rotating shaft, mixing the material in maximum, inner screw ribbon blade forced the material to sides ,outer screw ribbon blade forced sides material to inward, mix the materials back and forth. In the same time, some material driven by screw ribbon do the radial motion, to form the convective mixing, so to achieve uniform mixing effect in relatively short time. The mixing time:10-15min/batch

Screw Conveyor

The mixer mortar is transferred from mixer to finish product bin. The spiral body design with small diameter, high rotating speed and variable pitch ensures smooth, fast and uniform feeding of the product in the working process. The lubrication and sealing are reliable and leak-free. There is no waste of materials with good working environment.

Storage silo

The storage silo is of 1.5m³, store the finished material and prepare for the packing machine, which improves the efficiency highly.

Packing Machine

Valve type automatic dry mortar plant. 15-50kg/bag adjustable, the packing speed is 5-6s/bag. Fast packing speed, high weighing accuracy, high degree of automation, and simple operation.

Air Compressor

0.12m³, balance the air pressure, provide air source for packing machine for quick packing and broken arch of finish product hopper.
