Containerized Mobile Weighing And Bagging Machine Unit Filling Sealing

Minimum Order Quantity : 1 set Price : Negotion
Packaging Details : plywood box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL

Detail Information

Name: Mobile Containerized Bagging Machine Main Function: Weighing Forming Filling Sealing
Working Temperature: -20℃-40℃ Packing Speed (bag/hour): 700
Accuracy: +/- 0.2% Weighing Range: 20-100kg
Power: AC380V,50HZ, Or Customized According To The Power Supply
High Light:

Containerized Mobile Weighing And Bagging Machine

,

Mobile Weighing And Bagging Machine unit

,

mobile bagging plant

Product Description

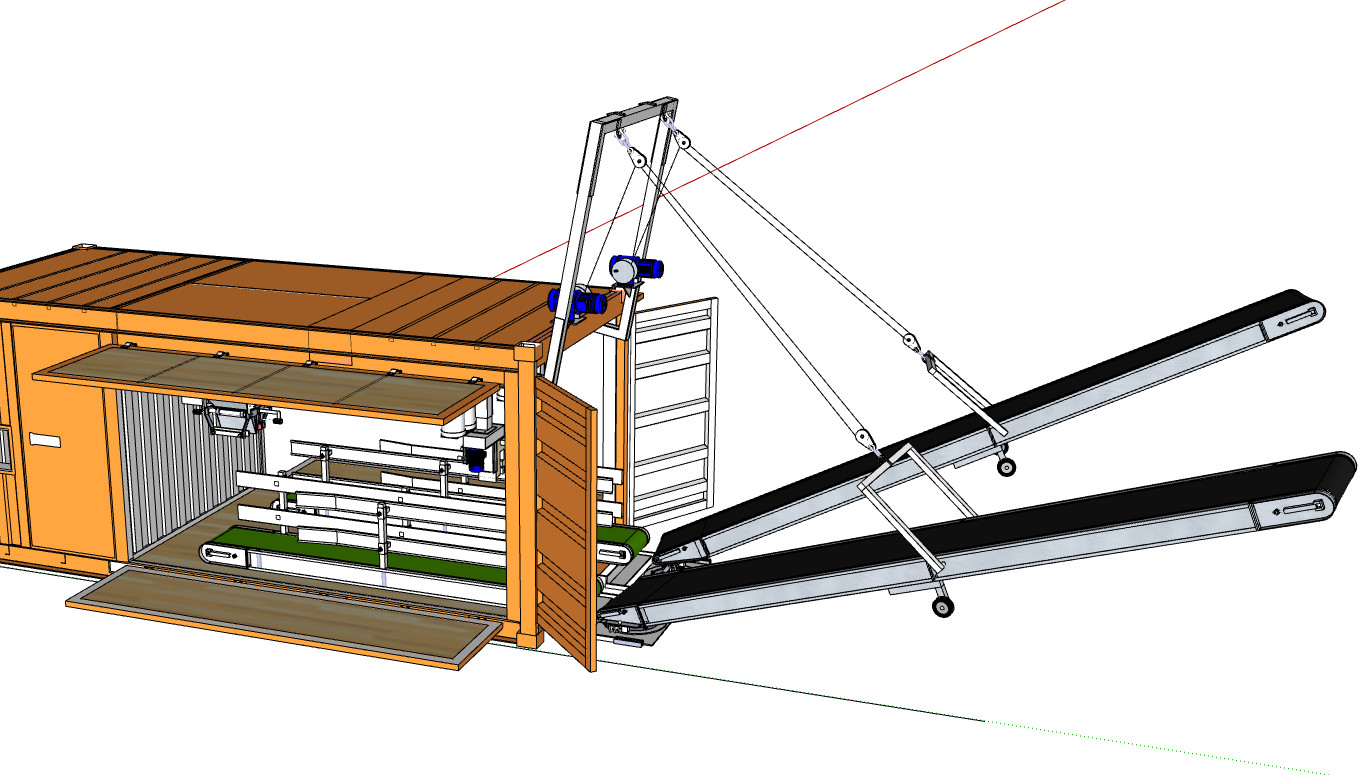

Mobile Containerized Bagging System,Containerized Mobile Weighing And Bagging Unit


Introduction

This type of machine is specially designed to work for grain depot, port or dock and needing to change working sites frequently.
The wall of the container is made of corrugated steel sheet with function of thermal insulation, fire and vibration proofing. It can operate smoothly under negative 30 degrees. Inside the container, the weighing and packing system could be customized into single, double or multiple stations. Suitable materials include grain, feed, fertilizer, PVC, etc.


Mobile bagging machine is widely used for bulk packaging in the ports,docks, grain depots, mines, and will help you out of the problem,simply put which will help you in three ways.
a) Good mobility.With container structure, all devices are integrated in two containers, it is very conveniently for you to transit to anywhere you want.After it finishes its work,you can take it to next working place easily.
b) Save time and space.With container structure,all devices are integrated in two containers, which needs less space.All machines in the containers have been installed and debugged before leaving the factory, Also they don't need a base foundation,which really help you save a lot of time.
c) Less pollution and injury. Closed operation of devices can greatly reduce injury and pollution from material dusts to human beings and the environment.

Technical parameters

Model
Production line

Weighing range

Accuracy
Packing speed
(bag/hour)

Air source
DSC-MC12 Single-line,
double scale
20-100kg +/- 0.2% 700 0.5-0.7Mpa
DSC-MC22 Double-line,
double scale
20-100kg +/- 0.2% 1500 0.5-0.7Mpa
Power AC380V,50HZ, or customized according to the power supply
Working temperature -20℃-40℃
Bag type Open mouth bag, valve port bag, PP woven bag, PE bag, Kraft paper bag,Paper-plastic composite bag,Aluminum foil bag
Feeding mode Gravity flow feeding,auger feeding,belt feeding,vibrating feeding
Packing mode Automatic quantitative weighing, manual bagging,automatic filling,manual assistance, machine sewing



Details
Containerized Mobile Weighing And Bagging Machine Unit Filling Sealing 0Containerized Mobile Weighing And Bagging Machine Unit Filling Sealing 1


About us
Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.

Wuxi Jianlong offers a wide range of knowledge about packaging machines and related ancillary equipment, bags and products, as well as packaging automation solutions. Through the careful testing of our professional technology and R & D team, we are committed to providing perfect customized solutions for every customer. We combine the international quality with the Chinese local market to provide an ideal automatic / semi-automatic, environmental friendly and efficient automatic packaging system. We are constantly striving to provide customers with intelligent, clean and economical packaging equipment and industrial 4.0 solutions by combining rapid localization service and spare parts delivery.
